etc-nand

Note that the PDF Version of this page might look a bit better styling wise.

You can click the PCB images to switch to the other side.

Overview

etc-nand is a real-world ETC.A CPU built from almost only quad NAND gate ICs (74hc00)

It will probably be finished in a few months.

Estimates

Estimated gate count:

2800 NAND gates
320 tristate buffers

Estimated component counts:

700x 74hc00 quad NAND gates
40x 74HC54 octal tristate buffers
a few simple resistors

Planned Specifications

ETC.A base instruction set + byte operations + S&F + Von Neumann

The CPU will communicate with peripherals over a 16 bit data + 15 bit address memory bus

Purchase

You will be able to purchase one in the future.

Stay tuned!

Images

Images of PCBs that are either already manifactured or currently beeing manifactured by JLCPCB.

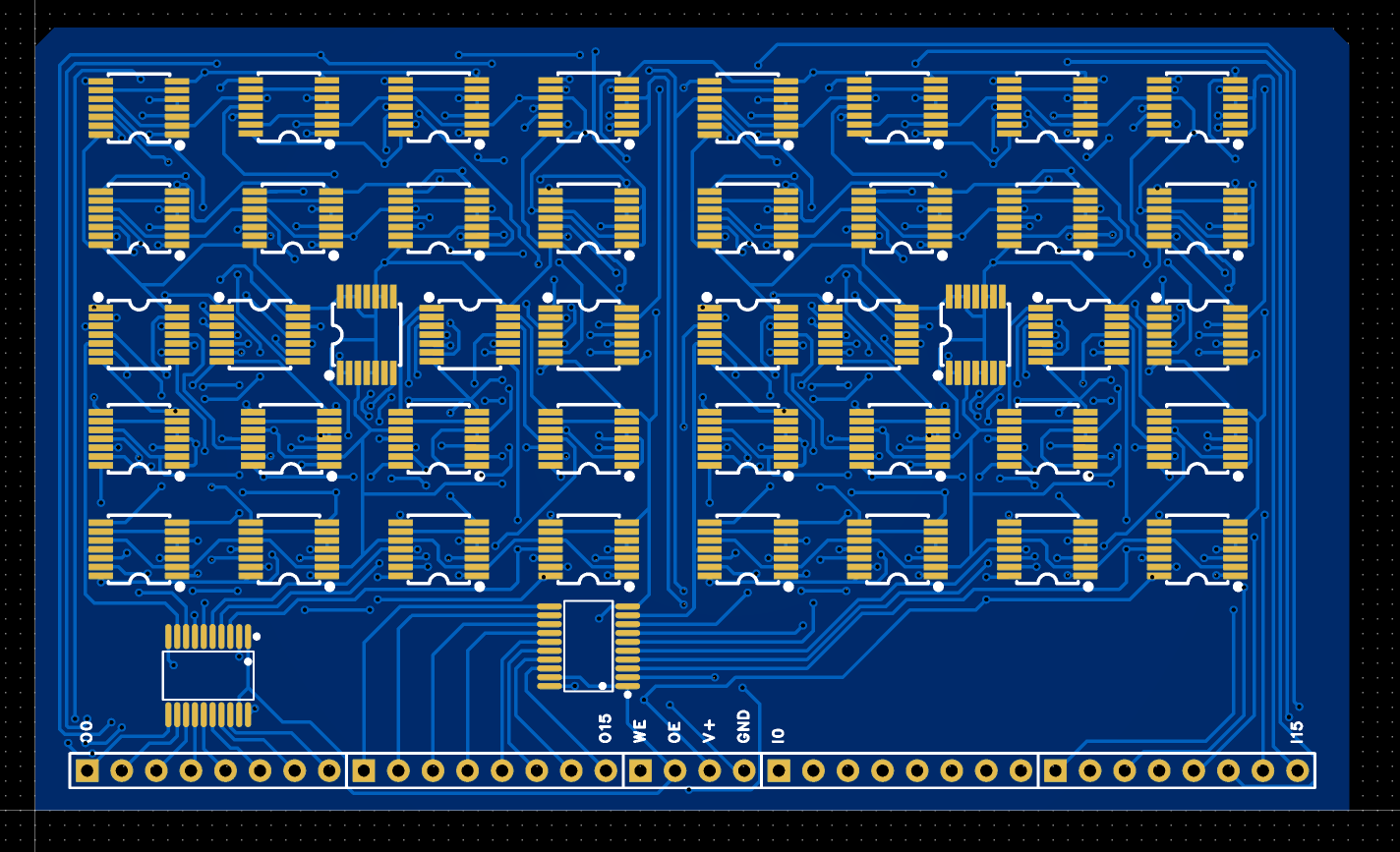

16 bit register

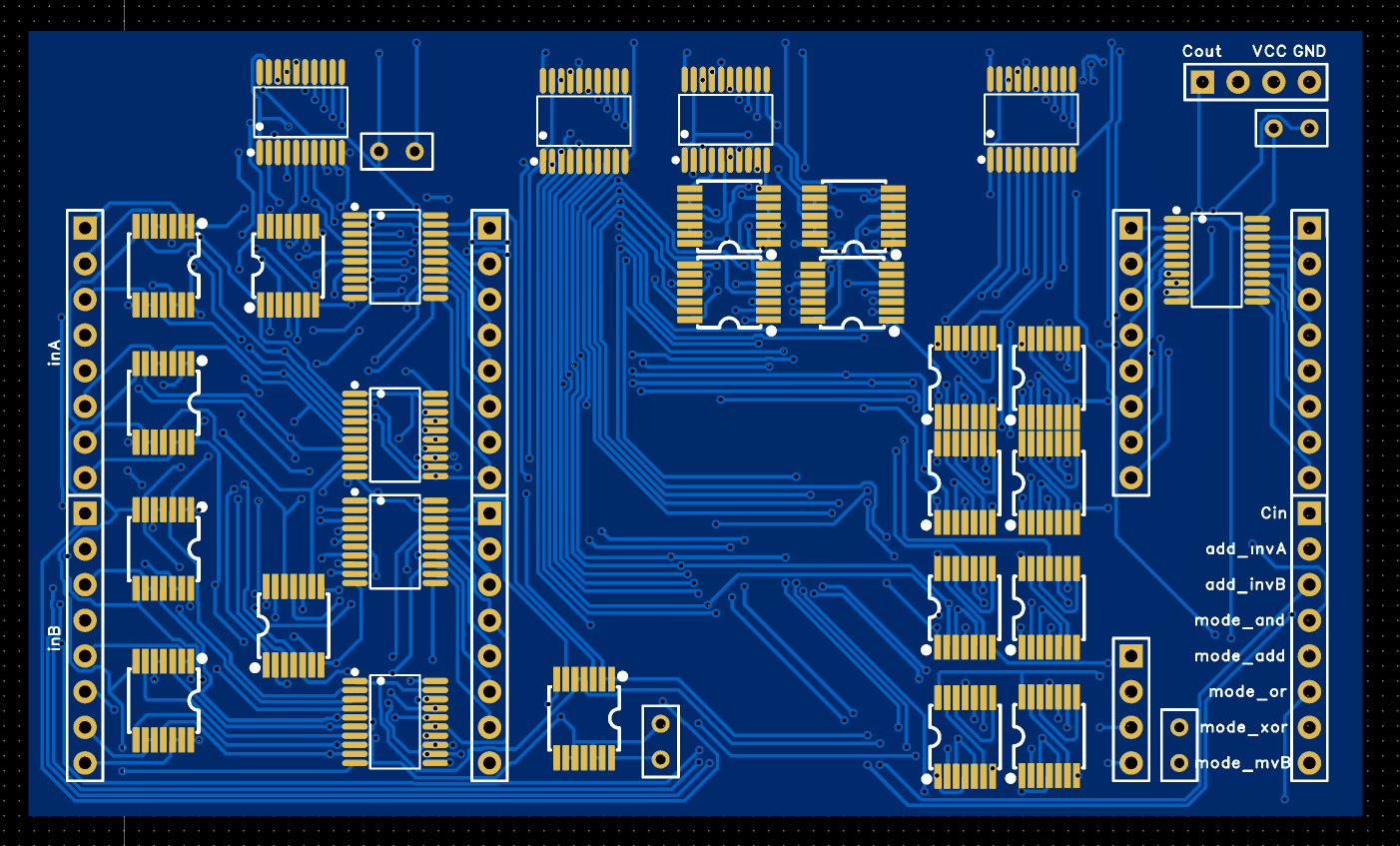

8 bit ALU slice

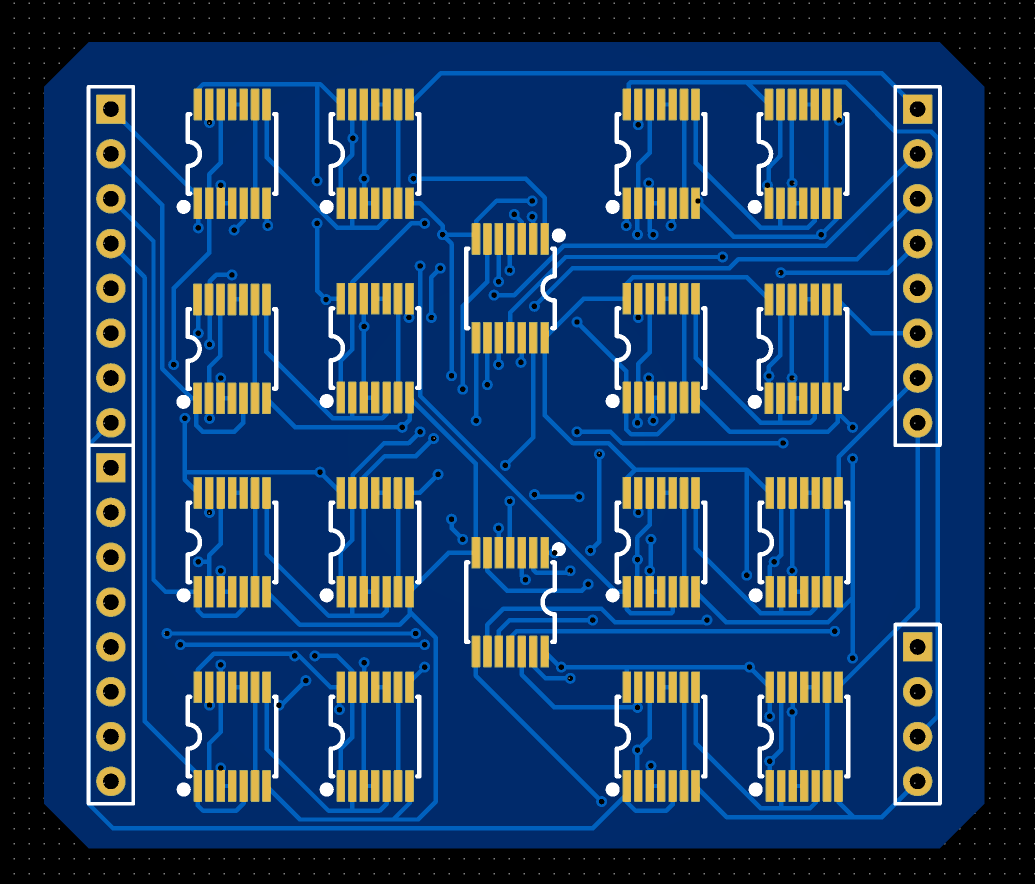

A 8 bit adder module will be placed in the middle
